MaytinhcongnghiepLYNC-817
One series, 1 configurations.

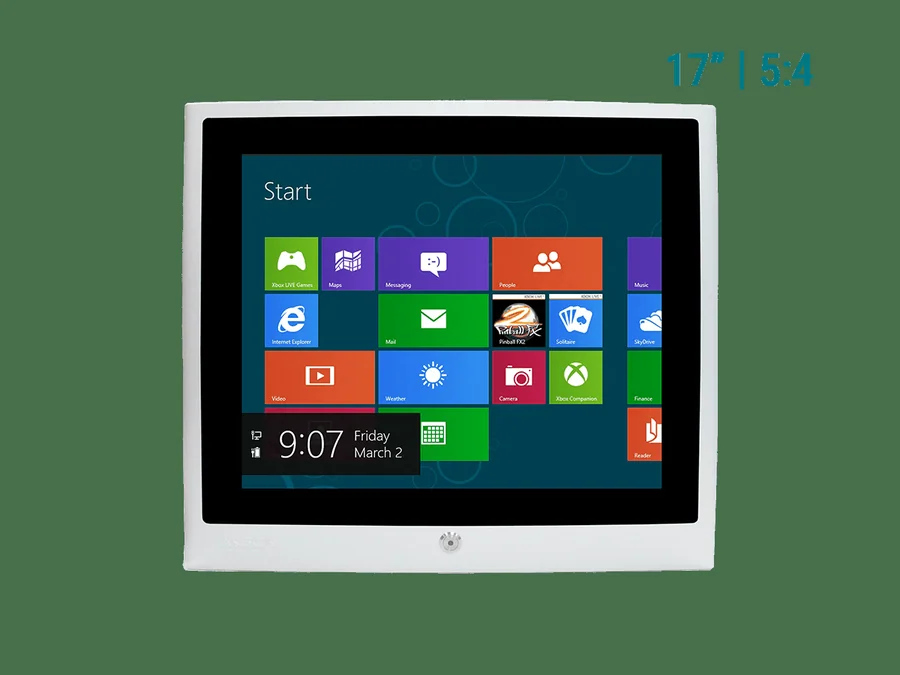

Display and computer in one unit, mounted straight onto the cabinet face.
True for every configuration in the series
The items below stay the same whichever configuration you pick — no need to re-check after choosing.
- Operating temperature range
- 0 ~ 55 °C
- DC power input
- 9–36 VDC
- IP protection rating
- IP65 (FRONT PANEL)
- Resolution
- 1280x1024 SXGA
- Display brightness
- 350 nit
- COM ports
- 4 ports
- LAN ports
- 2 ports
- Expansion slots
- 1 slots
- Power over Ethernet
- No PoE
- Digital I/O (DIO)
- No
- Cooling
- Fanless (passive)
- Touch screen
- Resistive
Choose a configuration
Filter quickly, then click a model number for the full specs. Not sure which one, send us your installation conditions and our engineers will pick for you.
| Select for comparison | Model number | Display | CPU | Environment | Ports · I/O | Reference price |
|---|---|---|---|---|---|---|
| LYNC-817 | 17″ · 1280x1024 SXGA 350 nit · Resistive | J1900 Quad-Core Processor 2.0GHz | 0~55°C · IP65 (FRONT PANEL) Fanless · 9–36 VDC | 4 COM · 2 LAN · 1 PCIe — |
No configuration matches these filters. Remove a condition, or ask an engineer — the version you need may be orderable even if it is not on the site.
Tick 2–3 configurations in the first column to put them side by side — the comparison page highlights exactly the cells that differ, so you don’t have to scan every row.
Not sure which configuration fits?
Describe the installation site — temperature, vibration, power supply, devices to connect — and IPC247 engineers will build a complete configuration for those conditions.
