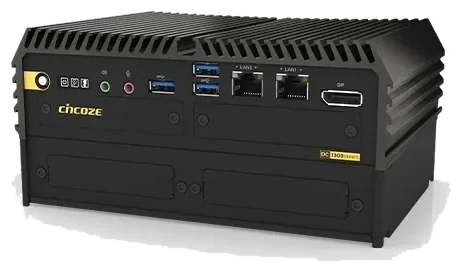

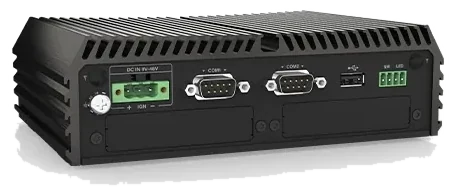

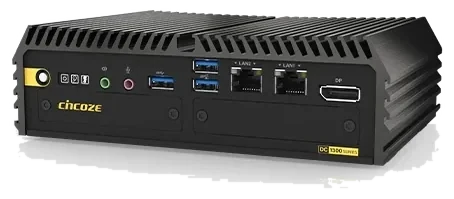

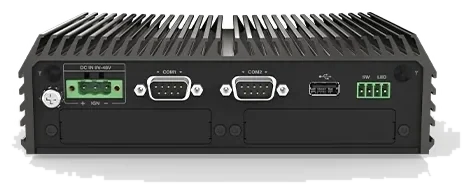

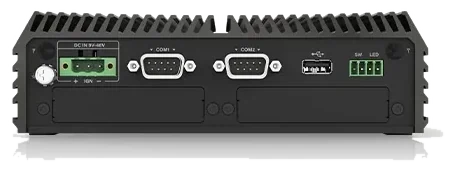

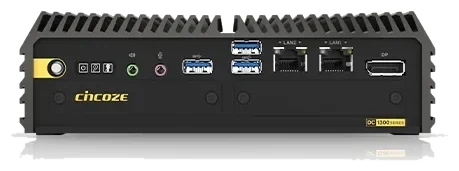

Cincoze DC-1300-i3-R10 compact, rugged embedded industrial computer operating across a wide -40°C to 65°C temperature range, wide 9-48VDC power input, MIL-STD-810H shock/vibration resistance, supporting flexible mounting (Wall, Side, DIN-Rail, VESA), and equipped with an Intel® Core™ i3-N305 processor.
This is a reference range for the barebone unit, excluding RAM and storage. See the three complete-set configuration tiers just below.
Industrial PCs usually ship as barebone units — RAM and storage are added to match the workload. Below are the three tiers we pre-build for this model, with the complete-set total. No component picking, just pick a tier.
Runs one operating application with light data logging. Enough for HMI, process display and light data acquisition.
No headroom for a second application. If you plan to add workloads later, pick the tier above.
Get a quote for this tierThe tier we ship most often. Runs SCADA alongside management software, with headroom for the next few years.
This is the highest tier this machine accepts — the board supports at most 16 GB of RAM. If you need more, switch to a different series.
Get a quote for this tierThe complete-set total includes the machine, RAM and storage · updated 2026-08-02. Not included: OS licences, additional expansion modules and on-site installation — these depend on your system, so we quote them separately instead of guessing. Need a configuration outside these three tiers? Tell us your requirements and our engineers will build one.
| Operating temperature range | -40 ~ 60 °C (-40°C to 60°C (standard), -40°C to 65°C with External Fan Kit) |
|---|---|
| Power input | 9 - 48VDC |
| Power connector | 3-pin Terminal Block |
| Mounting | Wall Mount, Side Mount, DIN-RAIL Mount, VESA Mount |
| Dimensions (mm) | 185 x 131 x 56.5 |
| Weight (kg) | 1.5 |
| Vibration resistance | MIL-STD-810H — MIL-STD-810H |
| Certifications | UL, cUL, CB, IEC 62368-1, EN 62368-1, CE, UKCA, FCC, ICES-003 Class A, EN 61000-6-2, EN 61000-6-4, MIL-STD-810H |
| CPU | Intel Core i3-N305 |
|---|---|
| Socket | Onboard |
| RAM | DDR5 4800 MHz SO-DIMM · 1 slots · up to 16GB |
| Storage | 2.5" SATA HDD/SSD or Half-Slim SSD (SATA 3.0) · M.2 Key B Type 3042/3052 (PCIe Gen 3x1 / USB 3.2 Gen2x1 / SATA) · M.2 Key B Type 2242 (PCIe Gen 3x1 / USB 2.0) |
| GPU | Intel UHD Graphics |
| PCI/PCIe expansion slots | 0 |
| COM | 2× RS-232/422/485 |
|---|---|
| LAN | 2× 2.5GbE Intel I226 |
| USB | 2× USB USB 3.2 Gen2x1 · 1× USB USB 3.2 Gen1x1 · 1× USB USB 2.0 |
| Display outputs | 1× DisplayPort |
| Expansion | 1× M.2 Key B Type 3042/3052 Socket · 1× M.2 Key B Type 2242 Socket · 2× CMI Interface · 1× CFM Interface · 1× SIM Socket |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.

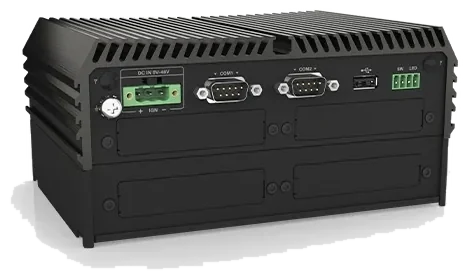

| SEB-DC01-R10 | Stackable Expansion Box with 4x Expansion Area for DC Series |
|---|---|
| CMI-VGA01 | CMI Module with 1x VGA Port |
| CMI-DVI01 | CMI Module with 1x DVI-D Connector |
| CMI-HD02 | CMI Module with 1x HDMI Port |
| CMI-DP03-R10 | CMI Module with 1x DisplayPort |
| CMI-COM03 | CMI Module with 2x RS232/422/485 Ports (Support 5V/12V), 2x DB9 Connector |
| CMI-DIO03 | CMI Module with 8x DIO (4in 4out) Ports, 1x 10 Pin Terminal Block |
| CMI-FAN01-R10 | CMI Module with 1x 4-pin Fan Connector |
| CFM-IGN02 | CFM Module with Power Ignition Sensing Function, Select 12V/24V |
| MEC-LAN-2002i | M.2 2242/2260/2280 (B+M key) 2-port 10/100/1000 isolated Ethernet board(-40°C~+85°C), 2x RJ45 Connector |
| MEC-LAN-2002i-S | M.2 2242/2260/2280 (B+M key) 2-port 10/100/1000 isolated Ethernet board(0°C~+70°C), 2x RJ45 Connector |
| MEC-USB-2002 | M.2 2242/2260/2280 (B+M key) 2-port USB 3.2 board(0°C~+70°C), 2x USB Type A Connector |
| MEC-USB-2002C | M.2 2242/2260/2280 (B+M key) 2-port USB 3.2 board(0°C~+70°C), 2x USB Type C Connector |
| MEC-COM-2012 | M.2 2242/2260/2280 (B+M key) 2-port RS-232 serial board (-40°C~+85°C), 2x DB9 Connector |
| MEC-COM-2032i | M.2 2242/2260/2280 (B+M key) 2-port RS-232/422/485 isolated serial board (-40°C~+85°C), 2x DB9 Connector |
| MEC-CAN-2812i | M.2 2242/2260/2280 (B+M key) dual isolated CAN bus 2.0B board (-40°C~+85°C), 2x DB9 Connector |
| MEC-CAN-2814i | M.2 2242/2260/2280 (B+M key) quad isolated CAN bus 2.0B board (-40°C~+85°C), 4x DB9 Connector |
| UB1103 | Universal Bracket with 2x DB9 Cutout for CMI-COM, MEC-COM & MEC-CAN Expansion |
| UB1106-R10 | Universal Bracket with 1x DP Cutout for CMI-DP Expansion |
| UB1107 | Universal Bracket with 1x DVI Cutout for CMI-DVI Expansion |
| UB1108 | Universal Bracket with 1x HDMI Cutout for CMI-HDMI Expansion |
| UB1111 | Universal Bracket with 2x RJ45 Cutout for MEC-LAN Expansion |
| UB1115 | Universal Bracket with 1x 10 Pin Terminal Block Cutout for CMI-DIO Expansion |
| UB1116 | Universal Bracket with 1x VGA Cutout for CMI-VGA Expansion |
| UB1129 | Universal Bracket with 2x RJ45 Cutout for MEC-LAN Expansion (DC Series Rear Bezel) |
| UB1131-R10 | Universal Bracket with 2x Antenna Cutout |
| UB1133-R10 | Universal Bracket with 2x USB Type C Cutout for MEC-USB Expansion |
| UB1134-R10 | Universal Bracket with 2x USB Type A Cutout for MEC-USB (M.2 interface) Expansion |
| UB1135-R10 | Universal Bracket with 1x 4-Pin Terminal Block Cutout for CMI-FAN Expansion |
| UB1911-R10 | Universal Bracket with 2x RJ45 Cutout for MEC-LAN Expansion (DC Series Front Bezel) |
| FAN-EX105-R10 | External Fan with 4pin Terminal Block Plug and Mounting Bracket, Support Smart Fan |
| AC-BE01-R10 | M.2 Key B Type 2242 to M.2 Key E Type 2230 Adapter Card |
| SIDE03 | Side Mount Kit for DC Series, with KMRH-K175 for DIN-Rail Mount |
| DIN01 | DIN-RAIL Mount Kit, KMRH-K175 |
| VESA-DC | DC series VESA Mount Kit |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug and Tubes, Level VI |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI |
Same chassis, same mounting — they differ in screen size and CPU. If the model above isn’t quite right, switching to one of these is usually enough.
Different series — some even a different brand — but the same machine type with closely matching key specs. We cross-check compatibility against the manufacturer’s documentation before quoting.
