MaytinhcongnghiepCB100

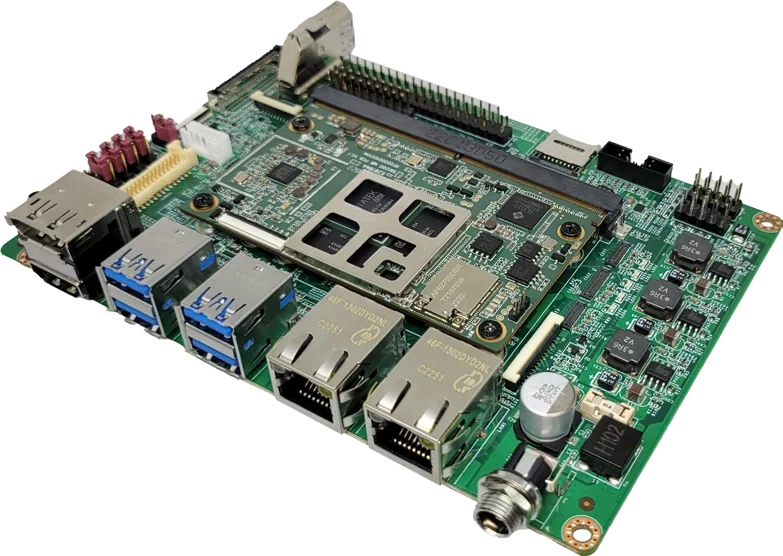

3.5" carrier board for the SM1200 SOM module, withstands -40~85°C, fully integrated USB/LAN/display ports and an M.2 slot for 5G/WiFi/SSD, DC-in 12V power via adapter, suited for outdoor/mobile industrial embedded devices.
- Operating temperature range -40 ~ 85°C
- Compact 3.5" SBC form factor, 146 x 102mm
- M.2 B/E/M-key slot for 5G, WiFi6+BT5.2, expansion SSD
- Supports an optional 8" TFT touch screen, 1280x800
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Or leave your phone number — an engineer will quote model CB100 within 4 working hours.
Industrial factors
| Operating temperature range | -40 ~ 85 °C |
|---|---|
| Power input | 12V |
| Power connector | Power Jack |
| Dimensions (mm) | 146 x 102 |
Computing
| PCI/PCIe expansion slots | 3 |
|---|
Connectivity & I/O
| LAN | 2× |
|---|---|
| USB | 2× USB USB 2.0 Type-A · 4× USB USB 3.1 Gen1 Type-A · 1× USB USB Type-C (DL & Debug, internal) |
| Display outputs | 1× DisplayPort · 1× HDMI (RX) · 1× HDMI (TX) · 1× LVDS (with inverter connector) |
| Expansion | 1× M.2 B-key · 1× M.2 E-key · 1× M.2 M-key · 1× Expansion Header 40-pin · 3× MIPI-CSI · 1× SIM card slot |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (3 items)
| 8" LCD TFT touchscreen 1280x800 | |
| Camera module 13.0 megapixel | |
| Module 5G qua khe M.2 B-key |
