- 0~50°COperating temp
- IP65Ingress rating
- FanlessCooling
- 6COM ports
- 2LAN ports
C11.03.04.010

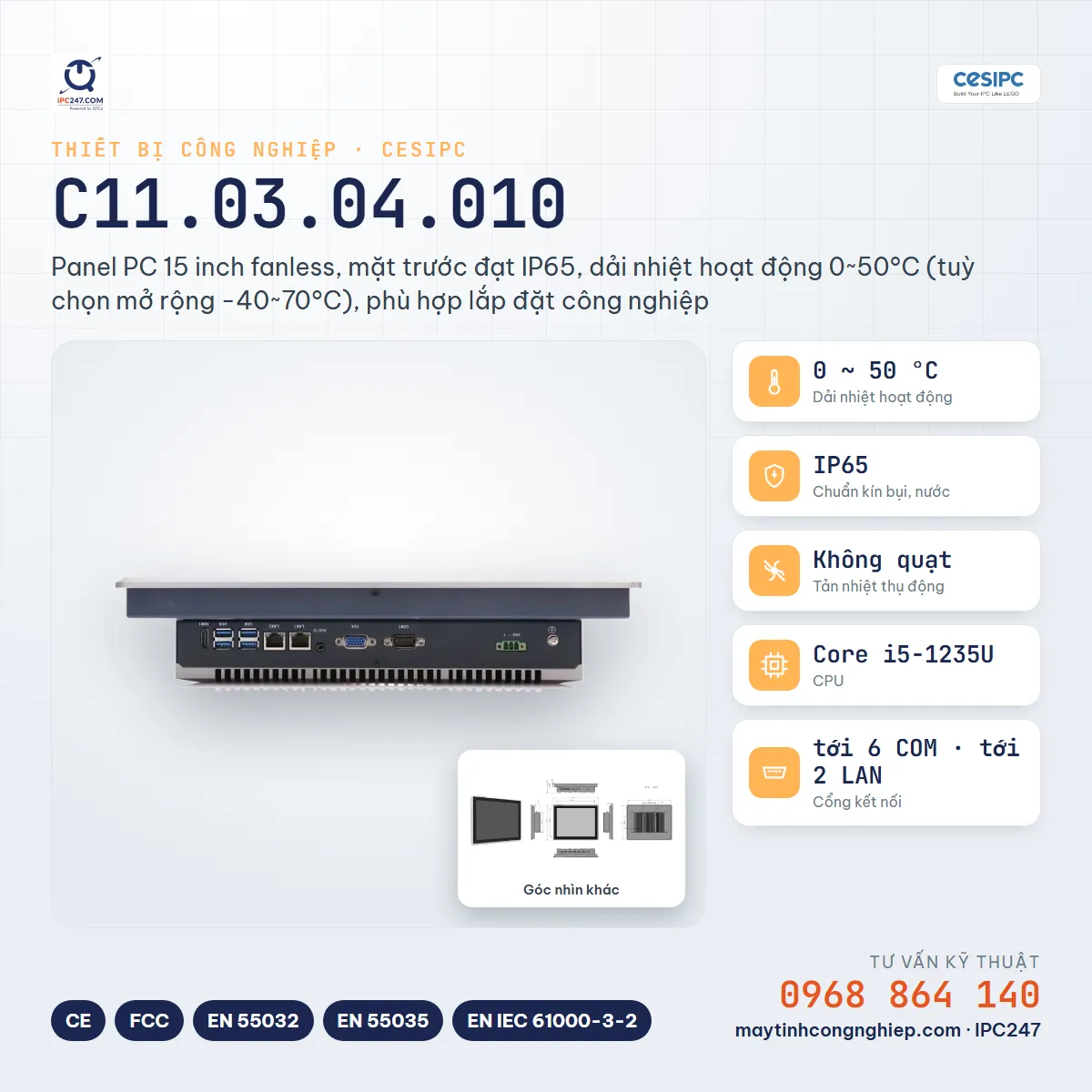

15-inch fanless panel PC, front panel rated IP65, 0~50°C operating range (optional extended -40~70°C), suited to industrial installations. Uses Core i5-1235U CPU (Gen 12).
- Fanless, front panel IP65
- Optional extended operating range -40~70°C
- Core i5-1235U CPU, DDR5 RAM, 2x M.2 SSD
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Or leave your phone number — an engineer will quote model C11.03.04.010 within 4 working hours.
CPU performance
CPU Mark, multi-coreCeleron J19001,139
Celeron J64123,804
Core i3-10110U3,806
Core i5-10210U6,008
Core i7-10510U6,336
Core i3-1215U10,080
Core i7-1250U11,206
Core i5-1235U12,407
Reference: PassMark, 07/10/2026. Source
Industrial factors
| Operating temperature range | 0 ~ 50 °C (extended temperature -40~70°C optional) |
|---|---|
| IP protection rating | IP65 front panel |
| Certifications | CE, FCC, EN 55032, EN 55035, EN IEC 61000-3-2, ISO9001:2015 |
Computing
| CPU | Core i5-1235U |
|---|---|
| GPU | Intel Iris Xe Graphics (integrated) |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| COM | 4× RS232, DB9 · 2× RS485, DB9 |
|---|---|
| LAN | 2× Intel I210 |
| USB | 2× USB 2.0 · 4× USB 3.0 |
| Display outputs | 1× VGA · 1× HDMI |
Display
| Screen size | 15" |
|---|---|
| Resolution | 1024x768 |
| Brightness (nit) | 300 |
| Touch | Projected Capacitive Touch (Resistive 5-wire optional) |
| Frame type | 4:3 |
| Front IP rating | IP65 |
