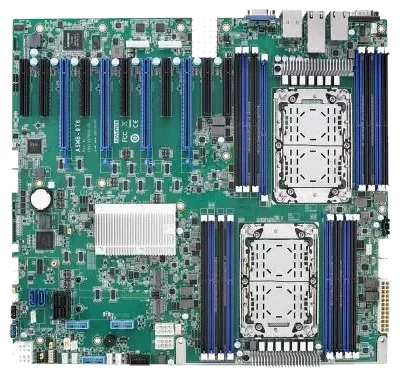

ASMB-976-00A1
Proprietary-format industrial server board for two 3rd Gen Intel Xeon Scalable CPUs (LGA4189), with a 0 ~ 40°C operating range, 11 PCIe expansion slots and 16 DDR4 ECC memory slots.
- 0 ~ 40°C operating range intended for industrial server systems
- Supports two 3rd Gen Intel Xeon Scalable CPUs on LGA4189, up to 270W TDP
- 16 DDR4 ECC RDIMM/LRDIMM memory slots up to 2TB, with Intel Optane Persistent Memory support
- Outstanding expansion with 11 PCIe slots in total (4 x PCIe x16 and 7 x PCIe x8)
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Or leave your phone number — an engineer will quote model ASMB-976-00A1 within 4 working hours.
Industrial factors
| Operating temperature range | 0 ~ 40 °C (depends on CPU speed and cooling solution) |
|---|---|
| Power connector | 24-pin SSI + 6 x 8-pin SSI 12V |
| Dimensions (mm) | 380 x 346 |
Computing
| CPU | 3rd Gen Intel Xeon Scalable Processors |
|---|---|
| Chipset | Intel C621A |
| Socket | Dual LGA4189 (Socket P4) |
| RAM | DDR4 ECC-REG RDIMM/LRDIMM 2666/2933/3200 MHz · 16 slots · up to 2048GB |
| Storage | 10× SATA3 · M.2 2280 B+M key (SATA/PCIe) · M.2 2280 B+M key (PCIe) |
| GPU | Aspeed AST2510 |
| PCI/PCIe expansion slots | 11 |
Connectivity & I/O
| COM | 1× RS-232 · 1× RS-232 (header) |
|---|---|
| LAN | 2× 1GbE Intel I210AT |
| USB | 2× USB USB 3.2 Gen 1 (Rear) · 6× USB USB 3.2 Gen 1 (Onboard Header) · 1× USB USB 3.2 Gen 1 Type-A (Onboard) · 1× USB USB 2.0 Type-A (Onboard) |
| Display outputs | 1× VGA |
| Expansion | 4× PCIe x16 · 7× PCIe x8 |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (7 items)
| PCA-AUDIO-HDB1E | HD Audio-card |
|---|---|
| PCA-TPM-00B1E | TPM 2.0 Module by LPC |
| 1970004902T010 | LGA-4189 narrow CPU cooler for 2U/4U chassis (205W) |
| 1700028024-01 | Dual port USB 3.2 (Gen1) cable (45 cm/ 17.7 in) with bracket |
| 1701090401 | Single port RS-232 COM cable (40 cm / 15.7 in) with bracket |
| 1700019268-11 | Cable for onboard KBMS1 connector (35 cm/ 13.7 in) |
| 1960063434N000 | Cable bracket for 1700019268-11 |
