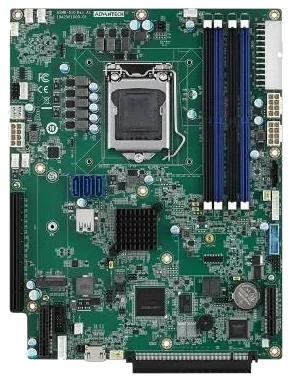

ASMB-610-00A1
Proprietary-form (205 x 265 mm) industrial server board compatible with the HPC-61 chassis, operating across a 0 ~ 40°C range, supporting Intel Xeon W and 10th Gen Intel Core processors on LGA 1200, ECC/non-ECC DDR4 memory up to 128GB, 4 Intel I350 LAN ports and 4 PCIe expansion slots.
- Proprietary server board size (205 x 265 mm) compatible with the HPC-61 chassis
- Reliable operation in industrial environments across a 0 to 40 °C range
- Supports Intel Xeon W and 10th Gen Core i9/i7/i5/i3 processors (LGA 1200 socket, up to 95W TDP)
- 4 x DDR4 UDIMM ECC/non-ECC 2933/2666/2400 MHz slots up to 128 GB
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Or leave your phone number — an engineer will quote model ASMB-610-00A1 within 4 working hours.
Industrial factors
| Operating temperature range | 0 ~ 40 °C |
|---|---|
| Power connector | 24-pin SSI power connector + 8-pin SSI 12V power connector |
| Mounting | HPC-61 series chassis |
| Dimensions (mm) | 205 x 265 |
Computing
| Chipset | Intel W480E |
|---|---|
| Socket | LGA 1200 |
| RAM | DDR4 UDIMM · 4 slots · up to 128GB |
| Storage | 3× SATA3 · M.2 2280/2242 (SATA/PCIe) |
| GPU | Aspeed AST 2600 |
| PCI/PCIe expansion slots | 4 |
Connectivity & I/O
| COM | 1× RS-232 · 1× RS-232 (header) |
|---|---|
| LAN | 4× 1GbE Intel I350 · 1× 10/100 Mbps Realtek RTL8201F VB |
| USB | 2× USB USB 3.2 · 1× USB USB 3.2 Type A (internal) · 2× USB USB 3.2 (internal header) |
| Display outputs | 1× VGA |
| Expansion | 2× PCIe x8 / PCIe x16 · 1× PCIe x4 · 1× PCIe x4 |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (2 items)
| PCA-TPM-00B1E | TPM 2.0 module |
|---|---|
| 1960049408N001 | LGA 1200 CPU heatsink for 1U chassis |
