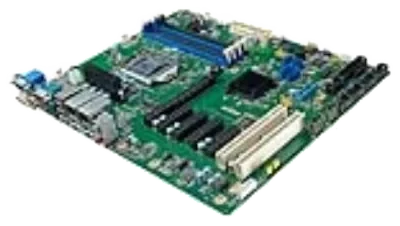

AIMB-787G2-00A4U
LGA1200 ATX industrial motherboard for 10th Gen Intel Core processors, with a 0 to 60°C operating range, Advantech iBMC 1.2 remote out-of-band power management, three independent displays and 2 GbE LAN ports.
- Advantech iBMC 1.2 remote out-of-band power management on DeviceOn
- 0 to 60°C operating range for industrial environments
- Supports 10th Gen Intel Core i9/i7/i5/i3 and Pentium/Celeron processors with the Q470E chipset
- Four DIMM slots for DDR4 2933 memory up to 128 GB
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Or leave your phone number — an engineer will quote model AIMB-787G2-00A4U within 4 working hours.
Industrial factors
| Operating temperature range | 0 ~ 60 °C (depends on CPU speed and system thermal solution) |
|---|---|
| Power connector | 8-pin 12V CPU power plug |
| Dimensions (mm) | 304.8 x 244 |
Computing
| Chipset | Q470E |
|---|---|
| Socket | LGA1200 |
| RAM | DDR4 2933 · 4 slots · up to 128GB |
| Storage | 4× SATA 3.0 · M.2 M-key 2280 (PCIe x4) |
| GPU | Intel UHD Graphics 610 |
| PCI/PCIe expansion slots | 5 |
Connectivity & I/O
| COM | 1× RS-232 · 4× RS-232 · 1× RS-232/422/485 |
|---|---|
| LAN | 1× 10/100/1000 Mbps Intel I219-LM · 1× 10/100/1000 Mbps Intel I210-AT |
| USB | 2× USB USB 3.2 Gen 2 · 4× USB USB 3.2 Gen 1 · 8× USB USB 2.0 |
| Display outputs | 1× VGA · 1× DVI-D · 1× DisplayPort |
| Expansion | 2× PCI · 4× PCIe x4 · 1× PCIe x16 |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (17 items)
| 1700002204 | 2-port USB 2.0 cable w/ BKT(27 cm) |
|---|---|
| 1700028292-01 | 2-port USB 3.0 cable w/ BKT(30 cm) |
| 1960052651N021 | CPU cooler for 2U, 4U and wallmount chassis (for CPU TDP=35~65W) |
| 1970006198S001 | CPU cooler for 4U chassis (for CPU TDP=95~125W) |
| 1960047669N001 | CPU cooler for 4U chassis (for CPU TDP=65~125W) |
| 1701090401 | Single COM port cable(40 cm) |
| 1701092300 | Dual COM port cable(28.5 cm) |
| 1700022749-11 | SATA power cable |
| 1700022749-12 | SATA power cable |
| 1700022749-13 | SATA power cable |
| 1700019268-11 | PS/2 KB/Mouse cable |
| 1960063434N000 | IO bracket for PS/2 KB/Mouse cable |
| PCA-TPM-00B1E | dTPM 2.0 LPC module to enable TPM and vPro technologies |
| AIMB-R430P-03A2E | 2U riser card with 3 PCI expansion |
| AIMB-R431F-21A1E | 2U riser card with 1 PCIex16 & 1 PCIex1 expansion |
| AIMB-R43PF-21A1E | 2U riser card with 1 PCIex16 & 2 PCI expansion |
| AIMB-R4301-03A2E | 2U riser card with 1 PCIex1 expansion |
