AIMB-723G2-00A1

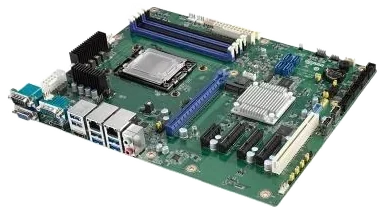

Advantech AIMB-723 ATX industrial motherboard operating across a 0 ~ 60 °C range, supporting AMD Ryzen™ Embedded 7000/8000/9000 processors, up to 256 GB DDR5 memory, three independent displays and dual GbE LAN networking.
- Stable operation across a 0 ~ 60 °C range, suited to industrial environments
- Supports AMD Ryzen™ Embedded 7000/8000/9000 processors with the B650 chipset
- 4 DDR5 DIMM slots up to 256 GB
- Three independent displays through DP, HDMI and VGA, plus 2 GbE LAN ports
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Or leave your phone number — an engineer will quote model AIMB-723G2-00A1 within 4 working hours.
Industrial factors
| Operating temperature range | 0 ~ 60 °C (depends on CPU load and system cooling solution) |
|---|---|
| Mounting | 2U chassis or higher, 4U chassis, Wall-mount chassis |
| Dimensions (mm) | 304.8 x 244 |
Computing
| Chipset | B650 |
|---|---|
| Socket | LGA 1718 |
| RAM | DDR5 · 4 slots · up to 256GB |
| Storage | 4× SATA 3.0 · M.2 (M-key 2280 NVMe) |
| GPU | AMD Radeon™ Graphics |
| PCI/PCIe expansion slots | 5 |
Connectivity & I/O
| COM | 6× 5 x RS-232, 1 x RS-232/422/485 |
|---|---|
| LAN | 2× 10/100/1000/2500 Mbps GbE LAN1: Intel I226-V; GbE LAN2: Intel I226-V |
| USB | 4× USB USB 3.2 Gen 2 · 4× USB USB 3.2 Gen 1 · 4× USB USB 2.0 |
| Display outputs | 1× VGA · 1× HDMI · 1× DisplayPort |
| Expansion | 1× PCI · 1× PCIe x1 · 1× PCIe x4 · 2× PCIe x4 · 1× PCIe x16 · 1× M.2 |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (9 items)
| 1700002204 | 2-port USB 2.0 cable w/ BKT(27 cm) |
|---|---|
| 1700028292-01 | 2-port USB 3.0 cable w/ BKT(30 cm) |
| 1970005786N001 | CPU cooler for 4U chassis |
| 1970005287T001 | CPU cooler for wall-mount chassis (For CPU Base Power 65W) |
| 1970006287N000 | 4 point mounting CPU cooler for 2U/4U chassis and wall-mount chassis (For CPU Base Power 65W) |
| 1701090401 | Single COM port cable(40 cm) |
| 1701092300 | Dual COM port cable(28.5 cm) |
| 1700022749-11/1700022749-12/1700022749-13 | SATA power cable |
| PCA-TPMSPI-00A1 | dTPM 2.0 SPI module to enable TPM and vPro technologies |
