AIMB-708VG-00A1

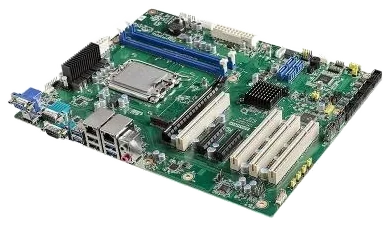

Advantech AIMB-708VG ATX industrial motherboard for 12th/13th/14th Gen Intel Core processors, with 1 GbE LAN port, VGA video output, 2 COM ports, 7 USB ports and 4 SATA 3.0 ports.
- Industrial design running reliably across a 0 ~ 60 °C range
- Supports 12th/13th/14th Gen Intel Core i9/i7/i5/i3 and Intel Core Series 2 processors (LGA1700 socket)
- 1 Intel I219-V GbE LAN port and VGA video output
- Up to 64GB non-ECC DDR4 3200MHz memory
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Or leave your phone number — an engineer will quote model AIMB-708VG-00A1 within 4 working hours.
Industrial factors
| Operating temperature range | 0 ~ 60 °C (depends on CPU speed and system thermal solution) |
|---|---|
| Mounting | ATX Chassis, 1U chassis, 2U chassis or higher, 4U chassis, wallmount chassis |
| Dimensions (mm) | 304.8 x 244 |
Computing
| Chipset | Intel H610E |
|---|---|
| Socket | LGA1700 |
| RAM | DDR4 3200 · 2 slots · up to 64GB |
| Storage | 4× SATA 3.0 |
| GPU | Intel UHD Graphics |
| PCI/PCIe expansion slots | 3 |
Connectivity & I/O
| COM | 2× RS-232 |
|---|---|
| LAN | 1× 10/100/1000 Mbps Intel I219-V |
| USB | 2× USB USB 3.2 Gen 1 · 5× USB USB 2.0 |
| Display outputs | 1× VGA |
| Expansion | 1× PCIe x16 · 2× PCIe x4 · 4× PCI |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (14 items)
| 1701090401 | Single COM port cable (40 cm) |
|---|---|
| 1701092300 | Dual COM port cable (28.5 cm) |
| 1970005349T000 | CPU cooler for 2U, 4U, and wallmount chassis (for CPU TDP=35~65W) |
| 1970005531T001 | CPU heatsink for 1U chassis (for CPU TDP≤65W only) |
| 1960112429N000 | I/O port bracket for 1U chassis |
| 1700022749-11 | SATA power cable |
| 1700022749-12 | SATA power cable |
| 1700022749-13 | SATA power cable |
| 1700002204 | 2-port USB 2.0 cable w/ BKT(27 cm) |
| PCA-TPMSPI-00A1 | dTPM 2.0 SPI module to enable TPM and vPro technologies |
| AIMB-RP10P-01A1E | 1U riser card providing 1 PCI slot |
| AIMB-RF10F-01A1E | 1U riser card providing 1 PCIe x 16 slot |
| AIMB-RP30P-03A1E | 2U riser card providing 3 PCI slots |
| AIMB-RP3PF-21A1E | 2U riser card providing 1 PCIe x 16 and 2 PCI slots |
