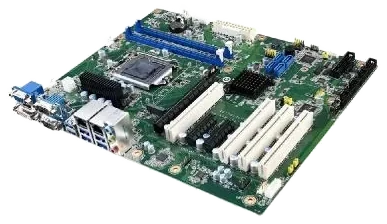

AIMB-707VG-00A5
LGA1200 ATX industrial motherboard for 10th Gen Intel Core processors, designed for industrial environments across a 0~60°C range, with 1 GbE LAN port, 2 COM ports, 7 USB ports and VGA video output.
- Stable operation in industrial environments across a 0 ~ 60 °C range
- Supports 10th Gen Intel Core i9/i7/i5/i3 and Pentium/Celeron processors on LGA1200
- Dual-channel non-ECC DDR4 memory up to 64 GB
- Basic, cost-saving VGA video output
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Or leave your phone number — an engineer will quote model AIMB-707VG-00A5 within 4 working hours.
Industrial factors
| Operating temperature range | 0 ~ 60 °C (depends on CPU speed and system thermal solution) |
|---|---|
| Power connector | 8-pin 12V CPU power connector |
| Dimensions (mm) | 304.8 x 244 |
Computing
| Chipset | Intel H420E |
|---|---|
| Socket | LGA1200 |
| RAM | DDR4 · 2 slots · up to 64GB |
| Storage | 4× SATA 3.0 |
| GPU | Intel HD Graphics |
| PCI/PCIe expansion slots | 3 |
Connectivity & I/O
| COM | 2× RS-232 |
|---|---|
| LAN | 1× 10/100/1000 Mbps Intel I219-V |
| USB | 4× USB USB 3.2 Gen 1 · 3× USB USB 2.0 |
| Display outputs | 1× VGA |
| Expansion | 1× PCIe x16 (Gen 3) · 2× PCIe x4 (Gen 3) · 4× PCI · 1× LPC |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (21 items)
| 1701090401 | Single COM port cable(40 cm) |
|---|---|
| 1701092300 | Dual COM port cable(28.5 cm) |
| 1700022749-11 | SATA power cable |
| 1700022749-12 | SATA power cable |
| 1700022749-13 | SATA power cable |
| 1700019268-11 | PS/2 KB/Mouse cable |
| 1960063434N000 | IO bracket for PS/2 KB/Mouse cable |
| 1700002204 | 2-port USB 2.0 cable w/ BKT(27 cm) |
| 1960047669N001 | CPU cooler for 4U and wallmount chassis (for CPU TDP=35~65W) |
| 1960052651N021 | CPU cooler for 2U, 4U, and wallmount chassis (for CPU TDP=35~65W) |
| 1970006198S001 | CPU cooler for 4U chassis (for CPU TDP=95~125W) |
| 1960049408N011 | CPU heatsink for 1U chassis (for CPU TDP=35W only) |
| 1960102528N001 | IO bracket for G2 sku on ACP-1010 chassis only |
| 1960102528N011 | IO bracket for VG sku on ACP-1010 chassis only |
| PCA-COM232-00A1E | 4-port RS-232 LPC module |
| PCA-COM485-00A1E | 4-port RS-422/485 LPC module |
| PCA-TPM-00B1E | dTPM 2.0 LPC module to enable TPM and vPro technologies |
| AIMB-RP10P-01A1E | 1U riser card providing 1 PCI slot |
| AIMB-RF10F-01A1E | 1U riser card providing 1 PCIe x 16 slot |
| AIMB-RP30P-03A1E | 2U riser card providing 3 PCI slots |
| AIMB-RP3PF-21A1E | 2U riser card providing 1 PCIe x 16 and 2 PCI slots |
