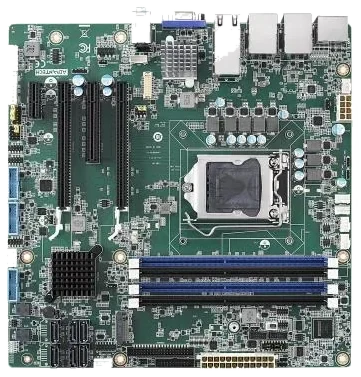

AIMB-587WG2-00A1E
Micro-ATX industrial motherboard with a 0-60°C operating range, ATX power and the Intel W480E chipset supporting ECC memory for Intel Xeon W-1200 and 10th Gen Core i processors.
- Stable operation in temperatures from 0 to 60°C
- Industrial Micro-ATX size (244 x 244 mm)
- Industrial standard ATX power supply
- ECC memory support for greater system stability
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Or leave your phone number — an engineer will quote model AIMB-587WG2-00A1E within 4 working hours.
Industrial factors
| Operating temperature range | 0 ~ 60 °C (Depends on CPU speed and heat dissipation solution) |
|---|---|
| Dimensions (mm) | 244 x 244 |
Computing
| Chipset | W480E |
|---|---|
| RAM | DDR4 · 4 slots · up to 128GB |
| Storage | 8× SATA III · M.2 M-key |
| GPU | Intel HD Graphics |
| PCI/PCIe expansion slots | 3 |
Connectivity & I/O
| COM | 2× 1 x RS-232, 1 x RS-232/422/485 |
|---|---|
| LAN | 2× 1GbE LAN1: Intel I219LM, LAN2: Intel I210AT |
| USB | 4× USB USB 3.2 Gen2 · 2× USB USB 3.2 Gen1 · 6× USB USB 2.0 |
| DIO | 8 in / 8 out |
| Display outputs | 2× DisplayPort |
| Expansion | 1× PCIe x16 · 1× PCIe x4 · 1× PCIe x1 · 1× M.2 M-key |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (14 items)
| 1700026162-01 | Dual port USB 2.0 ( pitch 2.0) cable 30cm with bracket |
|---|---|
| 1700020277-01 | Dual port USB 3.0 cable 30cm with bracket |
| 1960067860N001 | LGA1155 CPU cooler for 4U and wallmount chassis, for CPU TDP 125W |
| 1960047669N001 | LGA1156 CPU cooler for 4U and wallmount chassis, for CPU TDP 84W, 4.72" (W) x 4.72" (L) x 3.03" (H) |
| 1960052651N021 | LGA1155 CPU for cooler 2U and backplane version of chassis, for CPU TDP 65W, 3.54"(W) x 3.54"(L) x 2.68"(H) |
| 1960053207N001 | LGA1155 CPU for cooler 2U and wallmount chassis, for CPU TDP 45W, 3.66"(W) x 3.66"(L) x 1.81"(H) |
| 1700018699 | 1-to-2 PS/2 KB/MS cable cable 25cm |
| 1700000447 | 1-to-4 serial ports cable kit, 45cm |
| 1701400181 | 1-to-4 serial ports cable kit, 18cm |
| 1960109853T000 | 1U IO bracket for chassis ACP-1010MB & HPC-7120S (should order screws separately) |
| 1700022363-01 | 1-to-1 serial port cable kit, 17cm |
| 1700030647-01 | 1-to-1 serial port cable kit, 30cm |
| 1700032328-01 | 2-to-2 serial port cable kit with IO bracket, 45 cm |
| AIMB-RF10F-01A1E | 1U riser card with 1 PCIex16 expansion |
