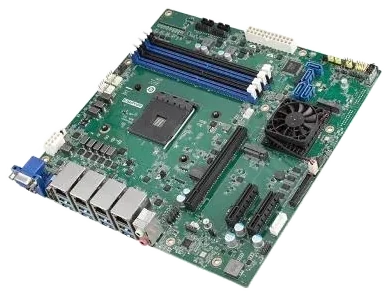

AIMB-522G4-00A2
Micro-ATX industrial motherboard with a 0~60°C operating range and ATX power input, carrying AMD AM4 Ryzen Embedded 5000 series processors with the X570 chipset, DDR4 memory up to 128GB, 4 LAN ports (2 x 2.5GbE, 2 x GbE) and three independent displays.
- Durable operation across a 0~60°C range for industrial environments
- Flexible, stable ATX power input for industrial systems
- Standard Micro-ATX size, easy to fit into an industrial cabinet or chassis
- Supports high-performance AMD AM4 Ryzen Embedded 5000 series processors with the X570 chipset
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | 0 ~ 60 °C (depends on CPU speed and cooler solution) |
|---|---|
| Power connector | 12V8P |
| Mounting | Micro-ATX chassis |
| Dimensions (mm) | 244 x 244 |
Computing
| CPU | AMD AM4 Ryzen Embedded 5000 Series Processors |
|---|---|
| Chipset | AMD X570 |
| Socket | AM4 |
| RAM | DDR4 · 4 slots · up to 128GB |
| Storage | 4× SATA III · M.2 NVMe |
| GPU | Radeon Graphics (APU) / Discrete Graphics Card Required (CPU) |
| PCI/PCIe expansion slots | 3 |
Connectivity & I/O
| COM | 2× RS-232/422/485 · 4× RS-232 |
|---|---|
| LAN | 2× 2.5GbE Intel i226LM · 2× 1GbE Realtek 8119i |
| USB | 8× USB USB 3.2 Gen2 · 3× USB USB 2.0 |
| Display outputs | 1× DisplayPort · 1× VGA · 1× HDMI |
| Expansion | 1× PCIe x16 · 2× PCIe x4 · 1× M.2 M Key · 1× M.2 E Key |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (6 items)
| 1700033177-01 | 1-to-1 serial port cable kit, 60cm with bracket |
|---|---|
| 1700030647-01 | 1-to-1 serial port cable kit, 30cm |
| 1700034017-01 | 1-to-4 serial ports cable kit with shield, 50cm |
| 1700002204 | Dual port USB 2.0 cable, 27cm with bracket |
| 1700032182-01 | Dual port USB 2.0 cable, 60cm |
| 1970005287T001 | AMD AM4 CPU cooler for 2U chassis, for CPU TDP 65W, 96x92x79.55mm |
