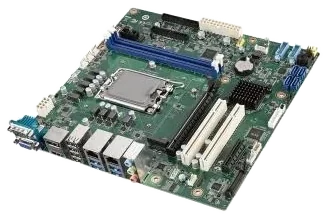

AIMB-508HF-EAA1
  • 0~60°COperating temp
  • Fan-cooledCooling
  • 10COM ports
  • 2LAN ports
  • 2PCIe slots
View datasheet Download PDF
Industrial boards Advantech AIMB-508

AIMB-508HF-EAA1

Micro-ATX industrial motherboard running reliably across a 0~60°C range on an industrial ATX supply. The H610E chipset supports 12th/13th/14th Gen Intel Core processors on LGA1700, DDR4 memory up to 64GB and rich expansion including PCIe Gen4, 10 COM ports and 2.5GbE LAN.

  • Micro-ATX form factor designed for industrial systems
  • Durable operation in industrial environments across a 0 ~ 60°C range
  • Supports 12th/13th/14th Gen Intel Core processors on LGA1700
  • Strong expansion with 1 x PCIe x16 Gen4, 1 x PCIe x4 Gen3 and 2 x PCI

Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.

Or leave your phone number — an engineer will quote model AIMB-508HF-EAA1 within 4 working hours.

CPU performance

CPU Mark, multi-core
Celeron G6900TE3,162
Celeron G6900E4,273
Pentium Gold G7400TE5,715
Pentium Gold G7400E6,200
Core i3-12100TE10,069
Core i3-13100TE12,005
Core i3-1210012,523
Core i3-12100E13,599
Core i3-14100T13,679
Core i3-13100E13,777
Core i3-1310014,097
Core i3-1410015,086
Core i5-12500TE15,533
Core i7-12700TE18,524
Core i5-1240018,825
Core i5-12500E19,603
Core i5-1250019,681
Core i5-14400T20,358
Core i5-13500TE20,448
Core i9-12900TE20,543
Core i9-13900TE21,732
Core i7-13700TE21,998
Core i5-14500T22,869
Core i5-1340023,890
Core i5-1440025,037
Core i5-13500E26,769
Core i9-12900E27,682
Core i7-12700E27,844
Core i7-1270029,755
Core i5-1450030,706
Core i5-1350030,729
Core i7-14700T30,819
Core i7-13700E32,759
Core i9-1290033,610
Core i7-1370035,839
Core i9-14900T36,239
Core i7-1470040,196
Core i9-13900E40,288
Core i9-1490044,530
Core i9-1390044,552
Compare performance with other models

Reference: PassMark, 07/10/2026. Source

Industrial factors

Operating temperature range0 ~ 60 °C (Depends on CPU speed and heat dissipation solution)
Dimensions (mm)244 x 244

Computing

ChipsetH610E
SocketLGA1700
RAMDDR4 · 2 slots · up to 64GB
Storage4× SATA III · M.2 2280 M key (NVMe)
GPUIntel UHD Graphics 770
PCI/PCIe expansion slots2

Connectivity & I/O

COM1× RS-232/422/485 · 9× RS-232
LAN1× 1GbE Intel I219V · 1× 2.5GbE Intel I226V
USB8× USB USB 3.2 Gen 1 · 6× USB USB 2.0
Display outputs1× DisplayPort · 1× HDMI · 1× VGA · 1× eDP · 1× LVDS
Expansion1× PCIe x16 Gen4 · 1× PCIe x4 Gen3 · 2× PCI

Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.

We only use this number to answer your request.

Optional accessories & modules (6 items)

1970005349T001LGA1700 CPU Cooler (for CPU TDP <= 65W), H: 56.5mm
1700020710-02Dual port USB 2.0 cable 25cm
17000017881 to 1 COM cable 30cm
1700000321-011 to 1 COM cable 75cm
17AD14GS1400013V044 in 1 COM cable 500mm
AIMB-TPMSPI-0IA1TPM 2.0 SPI module (SLB9672 FW15.23)

Other configurations in the AIMB-508 series

Same chassis, same mounting — they differ in screen size and CPU. If the model above isn’t quite right, switching to one of these is usually enough.

AIMB-508HF-EAA1U AIMB-508HL-0AA1

See the whole AIMB-508 series and compare configurations →

Advantech video
Advantech and Intel IoT: what does the Internet of Things mean?
Specifications follow the manufacturer’s technical documentation. View datasheet · Download datasheet →
