AIMB-286F-00A1U

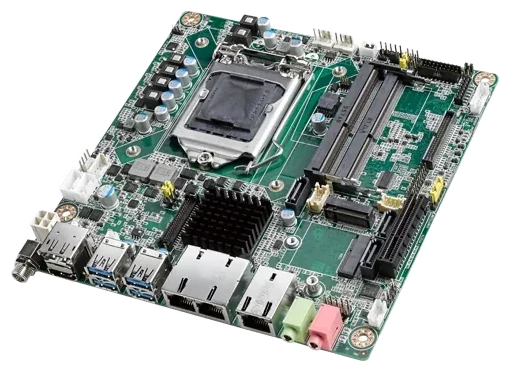

Low-profile Mini-ITX industrial motherboard running on 12V DC power across a 0~60°C range. The Intel H310 chipset serves 8th/9th Gen Intel Core i7/i5/i3 processors, with 3 GbE LAN ports, 6 COM ports, a PCIe x4 slot and an M.2 slot.
- Low-profile Mini-ITX design meeting industrial requirements
- Runs on a 12V DC input
- Operating temperature from 0°C to 60°C
- Supports 8th/9th Gen Intel Core i7/i5/i3 processors on LGA1151
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Or leave your phone number — an engineer will quote model AIMB-286F-00A1U within 4 working hours.
Industrial factors
| Operating temperature range | 0 ~ 60 °C (depends on CPU speed and heat dissipation solution) |
|---|---|
| Power input | 12V |
| Power connector | DC Jack |
| Dimensions (mm) | 170 x 170 |
Computing
| Chipset | Intel H310 |
|---|---|
| Socket | LGA1151 |
| RAM | DDR4 SDRAM · 2 slots · up to 64GB |
| Storage | 3× SATA III · M.2 B key |
| GPU | Intel HD Graphics |
| PCI/PCIe expansion slots | 1 |
Connectivity & I/O
| COM | 6× RS-232/422/485 |
|---|---|
| LAN | 2× 10/100/1000 Mbps Realtek 8111H · 1× 10/100/1000 Mbps Intel I210AT |
| USB | 4× USB USB 3.0 · 4× USB USB 2.0 |
| DIO | 8 in / 8 out |
| Display outputs | 1× DisplayPort 1.2 · 1× HDMI 1.4 · 1× LVDS/eDP |
| Expansion | 1× PCIe x4 Gen 3 · 1× M.2 B key · 1× M.2 E key |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (12 items)
| AIMB-B2000-15ZE | Mini-ITX chassis with 150W ATX power supply |
|---|---|
| AIMB-B2000-00YE | Mini-ITX chassis (Optional external AC-DC 60W/84W Adaptor) |
| 1700029428-01 | M cable USB-A 4P(F)*2/2*4P-2.0 25cm |
| 1960053207N001 | LGA1150 CPU cooler for CPU TDP 65W, 92.9 (W) x 92.9 (L) x 46 (H) mm |
| 1960060732N001 | LGA1150 CPU cooler for CPU TDP 45W, 80 (W) x 80 (L) x 32.2 (H) mm |
| 1970004564T010 | C.L R3 Sunflower LGA115X KabyLake 35W 90 (W) x 90 (L) x 25 (H) mm |
| 96PSA-A120W12V1-3 | ADP A/D 100-240V 120W 12V C14 DC Plug |
| 96PSA-A150W12W7-4 | ADP A/D 100-240V 150W 12V LOCKABLE DC JACK |
| 20706WX9ES0051 | img W10 19EL AIMB-286 64b 1809 ENU |
| 20706WX9HS0038 | mg W10 19HL AIMB-286 64b 1809 ENU |
| 20706WX9VS0041 | img W10 19VL AIMB-286 64b 1809 ENU |
| 20706U20DS0038 | img Ubun20.4 AIMB-286 64b 2004 ENU |
