AIMB-277G2-00A2U

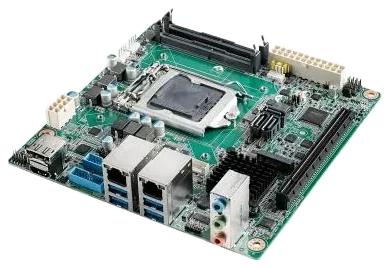

Advantech AIMB-277G2-00A2U Mini-ITX industrial motherboard for 10th Gen Intel Core processors on LGA1200, with a 0~60°C operating range, the Intel Q470E chipset, DDR4 memory up to 64GB and 1 PCIe x16 Gen3 expansion slot.
- Industrial design with a rugged CPU plate, operating from 0 to 60°C
- Supports 10th Gen Intel Core i9/i7/i5/i3 processors on LGA1200 with the Intel Q470E chipset
- Up to 64GB dual-channel DDR4 2933 MHz SO-DIMM memory
- Video output through HDMI 2.0a and DP 1.2 (eDP optional by BOM)
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Or leave your phone number — an engineer will quote model AIMB-277G2-00A2U within 4 working hours.
Industrial factors
| Operating temperature range | 0 ~ 60 °C (depends on CPU speed and cooler solution) |
|---|---|
| Dimensions (mm) | 170 x 170 |
Computing
| CPU | Intel 10th Gen Core i9/i7/i5/i3 / Pentium / Celeron |
|---|---|
| Chipset | Intel Q470E |
| Socket | LGA1200 |
| RAM | DDR4 SDRAM · 2 slots · up to 64GB |
| Storage | 3× SATAIII · M.2 M key (Type 2280) |
| GPU | Intel HD Graphics |
| PCI/PCIe expansion slots | 1 |
Connectivity & I/O
| COM | 2× RS-232/422/485 |
|---|---|
| LAN | 1× 10/100/1000 Mbps Intel i219LM · 1× 10/100/1000 Mbps Intel I210AT |
| USB | 4× USB USB 3.2 Gen2 · 4× USB USB 3.2 Gen1 |
| DIO | 4 in / 4 out |
| Display outputs | 1× HDMI 2.0a · 1× DP 1.2 |
| Expansion | 1× PCIe x16 Gen3 · 1× M.2 M key · 1× M.2 E key |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (7 items)
| AIMB-B2000-15ZE | Mini-ITX chassis with 150W ATX power supply |
|---|---|
| 1700020277-01 | Dual port USB 3.0 cable 30cm with IO bracket |
| 1700025832-01 | VGA cable 20cm |
| 1960047669N001 | C.L R3 I-LGA1156 S-95W 12V0.4A 95.0x95.0x69.37mm |
| 1960053207N001 | C.L R3 I-LGA1155 S-95W 92.9x92.9x46-SS 12V0.4A (for CPU TDP <= 65W) |
| 1960060732N001 | LGA1150 CPU cooler for CPU TDP 45W, 80 (W) x 80 (L) x 32.2 (H) mm |
| 1970004564T010 | C.L.R3 Kaby Lake 35W 75x75x25 sunflower |
