Maytinhcongnghiep
- 0~60°COperating temp
- Fan-cooledCooling
- 12–24 VDCPower input
- 2COM ports
- 2LAN ports
- 1PCIe slots

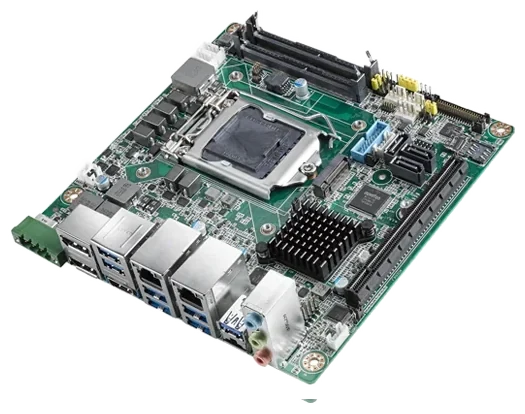

AIMB-276G2-00A3
AIMB-276 Mini-ITX industrial motherboard with a wide 12~24V DC input on a Phoenix connector and a 0~60°C operating range. The Intel Q370 chipset supports 8th/9th Gen Intel Core processors, DDR4 memory up to 64GB and three independent displays.
- Industrial operating range from 0°C to 60°C
- Wide-range 12V~24V DC input through a Phoenix connector, with ATX 5VSB support
- Supports 8th/9th Gen Intel Core i7/i5/i3, Pentium and Celeron processors (LGA1151 socket)
- Dual-channel DDR4 2666 MHz memory up to 64GB across 2 SO-DIMM slots
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Or leave your phone number — an engineer will quote model AIMB-276G2-00A3 within 4 working hours.
Industrial factors
| Operating temperature range | 0 ~ 60 °C (depends on CPU speed and cooler solution) |
|---|---|
| Power input | 12~24V |
| Power connector | Phoenix Connector |
| Dimensions (mm) | 170 x 170 |
Computing
| CPU | Intel 8th & 9th Gen Core i / Pentium / Celeron |
|---|---|
| Chipset | Intel Q370 |
| Socket | LGA1151 |
| RAM | DDR4 SDRAM · 2 slots · up to 64GB |
| Storage | 3× SATA III · M.2 B Key (Type 2242/3042) |
| GPU | Intel UHD Graphics 630 / Intel HD Graphics 615 |
| PCI/PCIe expansion slots | 1 |
Connectivity & I/O
| COM | 2× 1 x RS-232/422/485, 1 x RS-232 |
|---|---|
| LAN | 2× 10/100/1000 Mbps LAN1: Intel i219LM; LAN2: Intel I225LM/I226LM |
| USB | 6× USB USB 3.1 · 4× USB USB 3.0 |
| Display outputs | 2× DisplayPort 1.2 (DP++) · 1× HDMI 2.0a · 1× LVDS/eDP |
| Expansion | 1× PCIe x16 (Gen 3) · 1× M.2 B Key · 1× M.2 E Key |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (9 items)
| AIMB-B2000-15ZE | Mini-ITX chassis with 150W ATX power supply |
|---|---|
| 1700020277-01 | Dual port USB 3.0 cable 30cm with IO bracket |
| 1700023768-01 | 1x4P Phoenix to DC Jack 15cm cable |

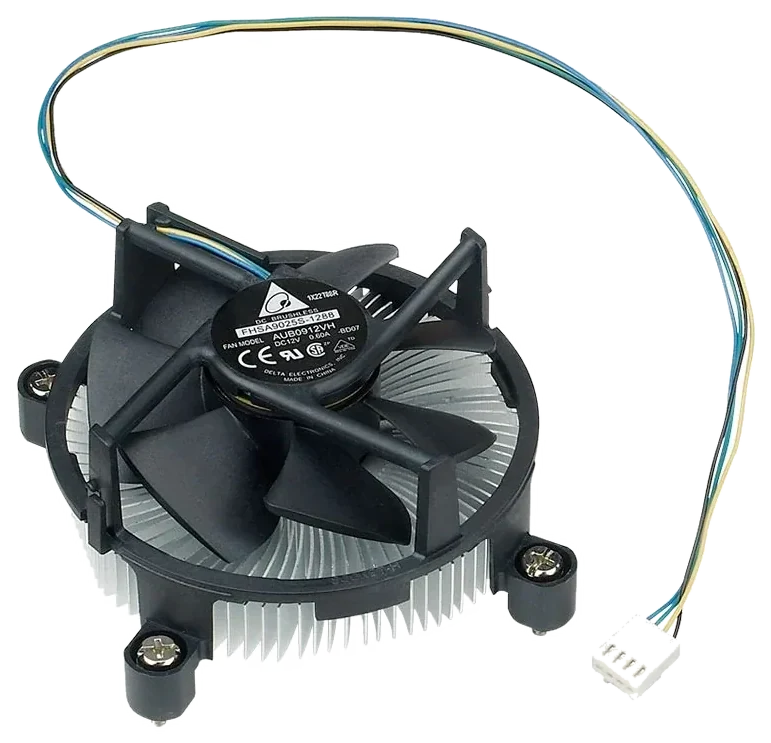

| 1960053207N001 | LGA1150 CPU cooler for CPU TDP 65W, 92.9 (W) x 92.9 (L) x 46 (H) mm |
| 1960060732N001 | LGA1150 CPU cooler for CPU TDP 45W, 80 (W) x 80 (L) x 32.2 (H) mm |
| 96PSA-A150W19P4-4 | ADP A/D 100-240V 150W 19V C14 TERMINAL BLOCK 4P |
| 96PSA-A230W24P4-3 | ADP A/D 100-240V 230W 24V C14 TERMINAL BLOCK 4P |
| AIMB-RF10F-01A1E | 1U riser card with 1 PCIex16 expansion |
| AIMB-RF20F-02A1E | 2U riser card for 1xPCIex16 to 2 PCIex16 (both Lane are PCIEX8 only) |
Other configurations in the AIMB-276 series
Same chassis, same mounting — they differ in screen size and CPU. If the model above isn’t quite right, switching to one of these is usually enough.
