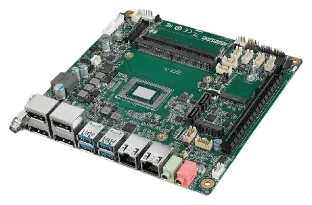

AIMB-2210R-00A1
Advantech AIMB-2210R-00A1 Mini-ITX industrial motherboard with an AMD Ryzen 7 Pro 8845HS processor, a wide 12-24V DC input range, 3 M.2 expansion slots, 1 PCIe x16 slot and up to four independent displays.
- Industrial Mini-ITX form factor running across a 0 ~ 60 °C operating range.
- Wide 12-24V DC-In power range (tolerance -10% / +20%) for industrial environments.
- Varied expansion with 1x PCIe x16 (PCIe x8 Gen4 bandwidth), 2x M.2 M-key (for NVMe SSD/Hailo AI), 1x M.2 E-key (for WiFi/BT).
- Rich I/O with 6 COM ports, 8 USB ports, 2 GbE LAN ports (2.5GbE optional) and 16-bit GPIO.
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Or leave your phone number — an engineer will quote model AIMB-2210R-00A1 within 4 working hours.
Industrial factors
| Operating temperature range | 0 ~ 60 °C |
|---|---|
| Power input | 12-24V |
| Power connector | DC Jack, Internal 4-pin ATX |
| Dimensions (mm) | 170 x 170 |
| Certifications | RoHS |
Computing
| CPU | AMD Ryzen 7 Pro 8845HS |
|---|---|
| Chipset | SoC |
| RAM | DDR5 · 2 slots · up to 96GB |
| Storage | 2× M.2 M-key · 2× SATA III |
| GPU | AMD RDNA 3 Radeon Graphics |
| PCI/PCIe expansion slots | 1 |
Connectivity & I/O
| COM | 1× RS-232 · 2× RS-232/422/485 · 1× RS-232 · 1× RS-232 · 1× RS-232 |
|---|---|
| LAN | 2× 10/100/1000 Mbps RTL8111K |
| USB | 4× USB USB 3.2 Gen2x1 · 4× USB USB 2.0 |
| DIO | 8 in / 8 out |
| Display outputs | 4× DP++ · 1× LVDS · 1× eDP |
| Expansion | 2× M.2 M-key · 1× M.2 E-key · 1× PCIe x16 |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (11 items)
| 1700003194-21 | SATA HDD cable |
|---|---|
| 1700034404-02 | 1-to-1 serial port cable, 50cm |
| 1960118411T001 | I/O port bracket |
| 2046221000 | Startup manual for AIMB-2210 |
| 19350304A0 | M.2 Screw, M3x4L R/S D=5.3 H=2 |
| 1700018785 | SATA power cable |
| AIMB-B2000-00YE | AIMB-B2000 wallmount chassis w/o adaptor |
| 1960092495T001 | CPU Heat sink (for CPU TDP 15W only, H : 26.5mm) |
| 1960089783T001 | CPU Cooler (CPU TDP 54W, H: 58.3mm) |
| 1960089784T001 | CPU Cooler (CPU TDP 35W, H: 45mm) |
| 1700034405-01 | 1-to-1 USB cable, 50cm |
