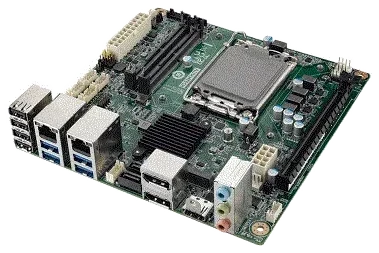

AIMB-208HL-EAA1 Mini-ITX industrial motherboard
  • 0~60°COperating temp
  • Fan-cooledCooling
  • 2COM ports
  • 1LAN ports
  • 1PCIe slots
View datasheet Download PDF
Industrial boards Advantech AIMB-208

AIMB-208HL-EAA1

Mini-ITX industrial motherboard in the standard 170x170 mm form factor, built to run across a 0~60°C operating range, powered through a standard ATX connector. Carries an LGA1700 socket for 12th/13th/14th Gen Intel Core processors, up to 64GB DDR4 memory, three independent displays via HDMI, DP and eDP, plus a PCIe x16 Gen4 slot.

  • Compact 170 x 170 mm Mini-ITX form factor suited to embedded equipment
  • Supports 12th/13th/14th Gen Intel Core processors on LGA1700 with the H610E chipset
  • DDR4 3200 MT/s memory up to 64GB across 2 SO-DIMM slots
  • 1 x PCIe x16 Gen4 slot for expansion cards

Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.

Or leave your phone number — an engineer will quote model AIMB-208HL-EAA1 within 4 working hours.

CPU performance

CPU Mark, multi-core
Celeron G6900TE3,162
Celeron G6900E4,273
Pentium Gold G7400TE5,715
Pentium Gold G7400E6,200
Core i3-12100TE10,069
Core i3-13100TE12,005
Core i3-1210012,523
Core i3-12100E13,599
Core i3-14100T13,679
Core i3-13100E13,777
Core i3-1310014,097
Core i3-1410015,086
Core i5-12500TE15,533
Core i7-12700TE18,524
Core i5-1240018,825
Core i5-12500E19,603
Core i5-1250019,681
Core i5-14400T20,358
Core i5-13500TE20,448
Core i9-12900TE20,543
Core i9-13900TE21,732
Core i7-13700TE21,998
Core i5-14500T22,869
Core i5-1340023,890
Core i5-1440025,037
Core i5-13500E26,769
Core i5-13400E27,000
Core i9-12900E27,682
Core i7-12700E27,844
Core i7-1270029,755
Core i5-1450030,706
Core i5-1350030,729
Core i7-14700T30,819
Core i7-13700E32,759
Core i9-1290033,610
Core i7-1370035,839
Core i9-14900T36,239
Core i7-1470040,196
Core i9-13900E40,288
Core i9-1490044,530
Core i9-1390044,552
Compare performance with other models

Reference: PassMark, 07/10/2026. Source

Industrial factors

Operating temperature range0 ~ 60 °C
Power connectorInternal 20-pin ATX + 8-pin cho CPU
MountingInstalled in Mini-ITX chassis, Installed in EPC-B2000 chassis
Dimensions (mm)170 x 170
CertificationsRoHS

Computing

ChipsetH610E
SocketLGA1700
RAMDDR4 · 2 slots · up to 64GB
Storage2× SATA III · M.2 M-Key (2242)
GPUIntel UHD Graphics 770
PCI/PCIe expansion slots1

Connectivity & I/O

COM2× RS-232
LAN1× 10/100/1000 Mbps Intel i219V
USB2× USB USB 3.2 Gen1x1 · 6× USB USB 2.0
Display outputs1× HDMI · 1× DP · 1× eDP
Expansion1× PCIe x16 Gen4 · 1× M.2 E-Key · 1× M.2 M-Key

Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.

We only use this number to answer your request.

Optional accessories & modules (4 items)

1970005349T001LGA1700 CPU Cooler H: 55.4mm (for TDP 65W)
1970005672T001LGA1700 CPU Cooler H: 32mm (for TDP 35W)
1700034405-011-to-2 USB cable, 50cm
EPC-B2000-A030EPC-B2000 chassis w/ 350W PSU and LGA1700 cooler

Other configurations in the AIMB-208 series

Same chassis, same mounting — they differ in screen size and CPU. If the model above isn’t quite right, switching to one of these is usually enough.

AIMB-208HF-LAA1

See the whole AIMB-208 series and compare configurations →
