96PD-SDMFIBRP

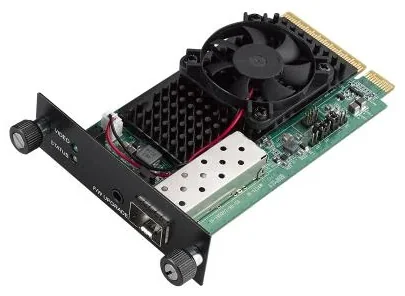

SDVoE 4K multi-display Multiview fiber-optic receiver module for the SDM-L standard, operating across an industrial -20 to 70°C temperature range, connecting via a 10G SFP+ interface.
- SDVoE solution for signal reception and Multiview support for the Intel SDM-L standard
- Wide -20°C to 70°C operating temperature range
- Supports an LC optical port, with transmission distance up to 10 km (single mode) or 300 m (multi mode)
- Supports HDMI 2.0/HDCP 2.2/1.4 with 4K@60Hz resolution
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Or leave your phone number — an engineer will quote model 96PD-SDMFIBRP within 4 working hours.
Industrial factors
| Operating temperature range | -20 ~ 70 °C |
|---|---|
| Mounting | SDM-L slot |
| Dimensions (mm) | 195 x 112 |
| Certifications | CE, FCC, RoHS |
Computing
| PCI/PCIe expansion slots | 0 |
|---|
Connectivity & I/O
| COM | 1× RS-232 |
|---|---|
| LAN | 1× 10G |
| Display outputs | 1× HDMI 2.0 |
| Expansion | 1× PCIe x4 (Gen2) |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (1 items)
| SFP-XMM-LCI-400 | SFP+SR/10G-ED, MM850/LC 400m, -10 ~ 70 °C |
|---|
